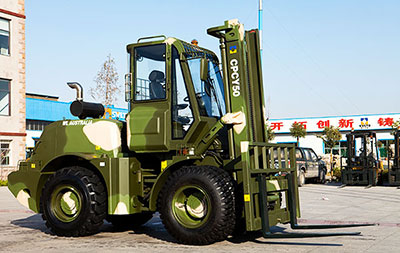

CPCY50 4x4WD Rough Terrain Forklift

CPCY50 4x4WD Rough Terrain Forklift

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: Qingdao Port
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2006-05-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  5750*2230*2950
  • Place of Origin:  Shandong Qingzhou
  • Brand Name:  SWLTD
  • Model Number:  CPCY50
  • Weight: 9535.000 kg

Parameter

Sequence Item Unit Specification
1 Rated load kg 5000
2 Length No fork mm 4300
With fork mm 5750
3 Width mm 2230
4 Height Height of the mast mm 2900
Height of the cab mm 2950
Full height whem max lifting mm 4367
5 Wheelbase mm 2280
6 Front overhang distance mm 880
7 Front wheel tread mm 1630
8 Rear wheel tread mm 1550
9 Ground clearance mm 310
10 Max lifting height mm 3000
11 Free lifting height mm -
12 Forward / rear titling angle of mast (°) 6/12
13 Standard Dead weight(no-load) kg 9535
14 Full load Max lifting speed mm/s 300
15 Min turning radius mm 4980
16 Max speed km/h 20.0
17 Max clinbing degree(full load) % 20
18 Max Drawbar(full load) kN 30.0
19 Load center distance mm 500

  • Size:  5750*2230*2950
  • Place of Origin:  Shandong Qingzhou
  • Brand Name:  SWLTD
  • Model Number:  CPCY50
  • Weight: 9535.000 kg
